9 days to finish the steel, pour the deck and backfill the abutments on each side just wide enough so the President can walk across and back is possible, but not to be open for traffic.
If that is to be 4 lanes there won't be a walkway on the bridge nor guard barriers, but I won't complain for 2 lanes.
But for sure some Dominican rude driver (is that redundant) will try to pass and squeeze in no matter how many lanes they make.
Pedestrian walkways can be welded on at a later date without interrupting traffic flow. Vehicle traffic is the political priority. My concern would be the overloaded trucks continuing to cross with impunity and the flexing steel spans. The built in curvature is going to be under a lot of long term stress. Someone posted the previous steel bridge lasted decades before failing due to overloading and lack of maintenance. I’m not an engineer and I’m guessing the steel spans have a useful life shorter than the abutments. We know preventative maintenance in the DR is an elusive thing. At some point will the spans stress crack and fail?

Nov 9, 2023
90
77
18
SC
The built in curvature is a compensation for final (construction) loads. It should be basically straight under load. I believe truck trailers are also built like that.

Any 2 lane road here will be a 4 lane when traffic density “demands” for it.

  • Haha
Reactions: cavok

chico bill

Dogs Better than People
May 6, 2016
12,502
6,272
113
The built in curvature is a compensation for final (construction) loads. It should be basically straight under load. I believe truck trailers are also built like that.

Any 2 lane road here will be a 4 lane when traffic density “demands” for it.
Yep, those beams are cold-cambered. Meaning they were fixed at the ends and a large hydraulic jack placed in the mid-span to bend them to a pre-determined camber.
Most all of the camber will flatten down once the concrete deck is poured, but possibly not all of it.
Cambering adds strength to steel beams.
A walkway could be added later ? I don't think so, but pipe hangers could be added for a water line, that used to hang on the old bridge.


lifeisgreat

Enjoying Life
May 7, 2016
3,269
1,161
113
So, it looks like it could be four lanes then(?).
Pictures don’t do Size Justice …bridge is massive more than enough room 4 lanes and walkway. Look at picture and roadway bridge is wider then road and cars parked on sides..

  • Like
Reactions: windeguy

chico bill

Dogs Better than People
May 6, 2016
12,502
6,272
113
Pictures don’t do Size Justice …bridge is massive more than enough room 4 lanes and walkway. Look at picture and roadway bridge is wider then road and cars parked on sides..
If there is a walkway on one side, say 4' wide plus a barrier between the walkway and traffic and a railing at a minimum outside the walkway to prevent fall offs into the water, plus a traffic barrier on the other side would take up at least 9'-10'. If it is 65' wide ( not certain on that) then there would be 55' available for traffic.
Four 12' lanes plus 18' for double striping middle divider line then 6" each for the other 2 dividing lines requires 50.5' - so it is possible but it will be snug. But there is no real reason to make it 4 lanes now since it necks down on each side to 2 lanes

  • Like
Reactions: thompstr

cavok

Silver
Jun 16, 2014
9,461
3,988
113
Cabarete
If there is a walkway on one side, say 4' wide plus a barrier between the walkway and traffic and a railing at a minimum outside the walkway to prevent fall offs into the water, plus a traffic barrier on the other side would take up at least 9'-10'. If it is 65' wide ( not certain on that) then there would be 55' available for traffic.
Four 12' lanes plus 18' for double striping middle divider line then 6" each for the other 2 dividing lines requires 50.5' - so it is possible but it will be snug. But there is no real reason to make it 4 lanes now since it necks down on each side to 2 lanes
It should be wide enough so Dominicans can continue to pass on the right if traffic gets slow.


lifeisgreat

Enjoying Life
May 7, 2016
3,269
1,161
113
If there is a walkway on one side, say 4' wide plus a barrier between the walkway and traffic and a railing at a minimum outside the walkway to prevent fall offs into the water, plus a traffic barrier on the other side would take up at least 9'-10'. If it is 65' wide ( not certain on that) then there would be 55' available for traffic.
Four 12' lanes plus 18' for double striping middle divider line then 6" each for the other 2 dividing lines requires 50.5' - so it is possible but it will be snug. But there is no real reason to make it 4 lanes now since it necks down on each side to 2 lanes
Ya I don’t get why they are making 4 lanes kinda stupid no hope in near future hwy to be 4 lanes ..maybe some plans down the rd..I think it’s going to cause fender benders for now..


Kricke87

Well-known member
Feb 16, 2021
538
426
63
Sosúa
come on folks let's get to a thousand comments by Christmas we can do it the famous crab Bridge
Sure I'm on it :ROFLMAO:
Looks to be by my calculations 65 feet plus or minus
How do you come to those calculations?
Just by looking at the pictures of those panels being laid, it seems like they don't look to be much bigger than 6 feet wide, and there are 8 panels so then the entire bridge would be more or less 50 feet wide... I might be wrong, but I don't think it's going to be a 4 lane bridge.


rogerjac

Bronze
Feb 9, 2012
1,380
439
83
Sure I'm on it :ROFLMAO:

How do you come to those calculations?
Just by looking at the pictures of those panels being laid, it seems like they don't look to be much bigger than 6 feet wide, and there are 8 panels so then the entire bridge would be more or less 50 feet wide... I might be wrong, but I don't think it's going to be a 4 lane bridge.
Okay somebody has to go down there and measure the width of the bridge before we get into an argument.

  • Haha
Reactions: nigrarosa

lifeisgreat

Enjoying Life
May 7, 2016
3,269
1,161
113

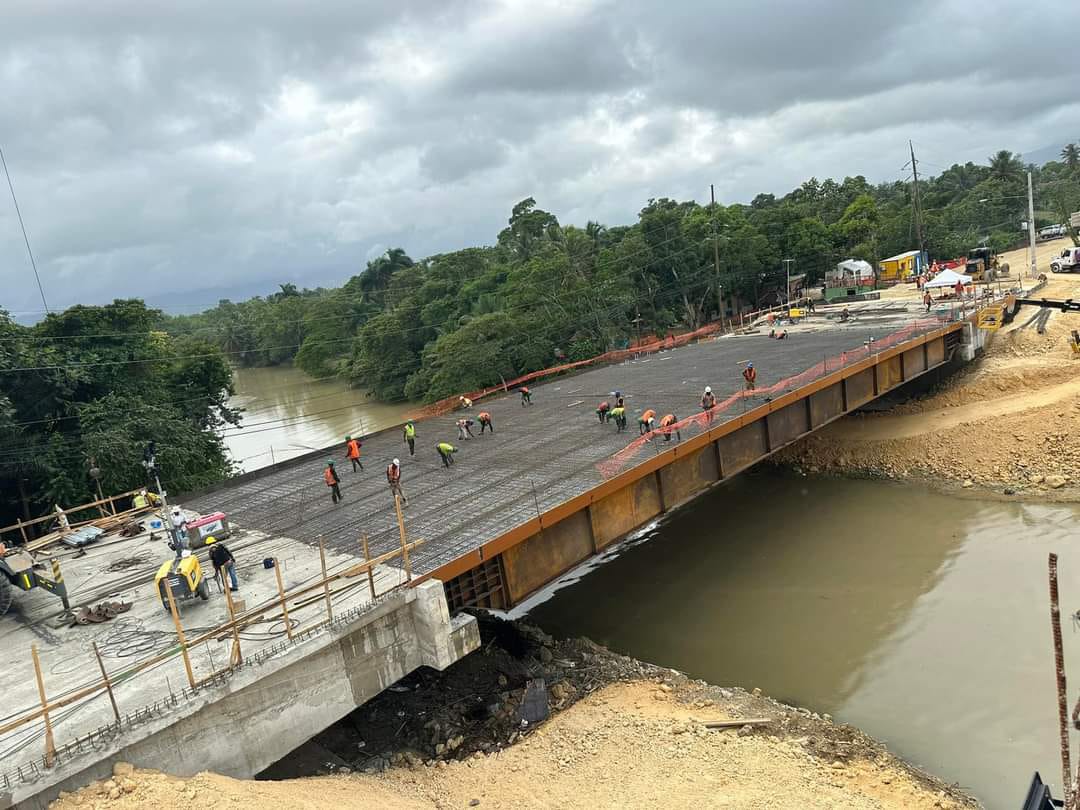

Pouring concrete!


cavok

Silver
Jun 16, 2014
9,461
3,988
113
Cabarete
Sure I'm on it :ROFLMAO:

How do you come to those calculations?
Just by looking at the pictures of those panels being laid, it seems like they don't look to be much bigger than 6 feet wide, and there are 8 panels so then the entire bridge would be more or less 50 feet wide... I might be wrong, but I don't think it's going to be a 4 lane bridge.
Look at the workers standing on those panels. They don't look as wide as a worker is tall, so maybe 4 feet each(?). That would make the bridge 32 feet wide.


El Hijo de Manolo

It's outrageous, egregious, preposterous!
Dec 10, 2021
3,923
2,575
113
Dominican Republic
Look at the workers standing on those panels. They don't look as wide as a worker is tall, so maybe 4 feet each(?). That would make the bridge 32 feet wide.
C, this really doesn't matter all the speculation and calculations. At the end of the day we're all just gonna have to drive across it regardless if they used steel or aluminum foil, concrete or cotton candy. Regardless if it's 34' or 10. It is what it is.


Kricke87

Well-known member
Feb 16, 2021
538
426
63
Sosúa
C, this really doesn't matter all the speculation and calculations. At the end of the day we're all just gonna have to drive across it regardless if they used steel or aluminum foil, concrete or cotton candy. Regardless if it's 34' or 10. It is what it is.
Wow.. talk about a buzzkill :rolleyes:
Well, I'm excited to be able to cross it in 10 days, I even have it on my bucket list... :LOL:


El Hijo de Manolo

It's outrageous, egregious, preposterous!
Dec 10, 2021
3,923
2,575
113
Dominican Republic
Wow.. talk about a buzzkill :rolleyes:
Well, I'm excited to be able to cross it in 10 days, I even have it on my bucket list... :LOL:
Maybe you can camp out, dress up like Batman and be the first one in line to cross. I will most likely wait a month or so to make sure I don't end up floating down the river


El Hijo de Manolo

It's outrageous, egregious, preposterous!
Dec 10, 2021
3,923
2,575
113
Dominican Republic
Yep, those beams are cold-cambered. Meaning they were fixed at the ends and a large hydraulic jack placed in the mid-span to bend them to a pre-determined camber.
Most all of the camber will flatten down once the concrete deck is poured, but possibly not all of it.
Cambering adds strength to steel beams.
A walkway could be added later ? I don't think so, but pipe hangers could be added for a water line, that used to hang on the old bridge.
Do they do stress tests on these things prior to the grand opening?
